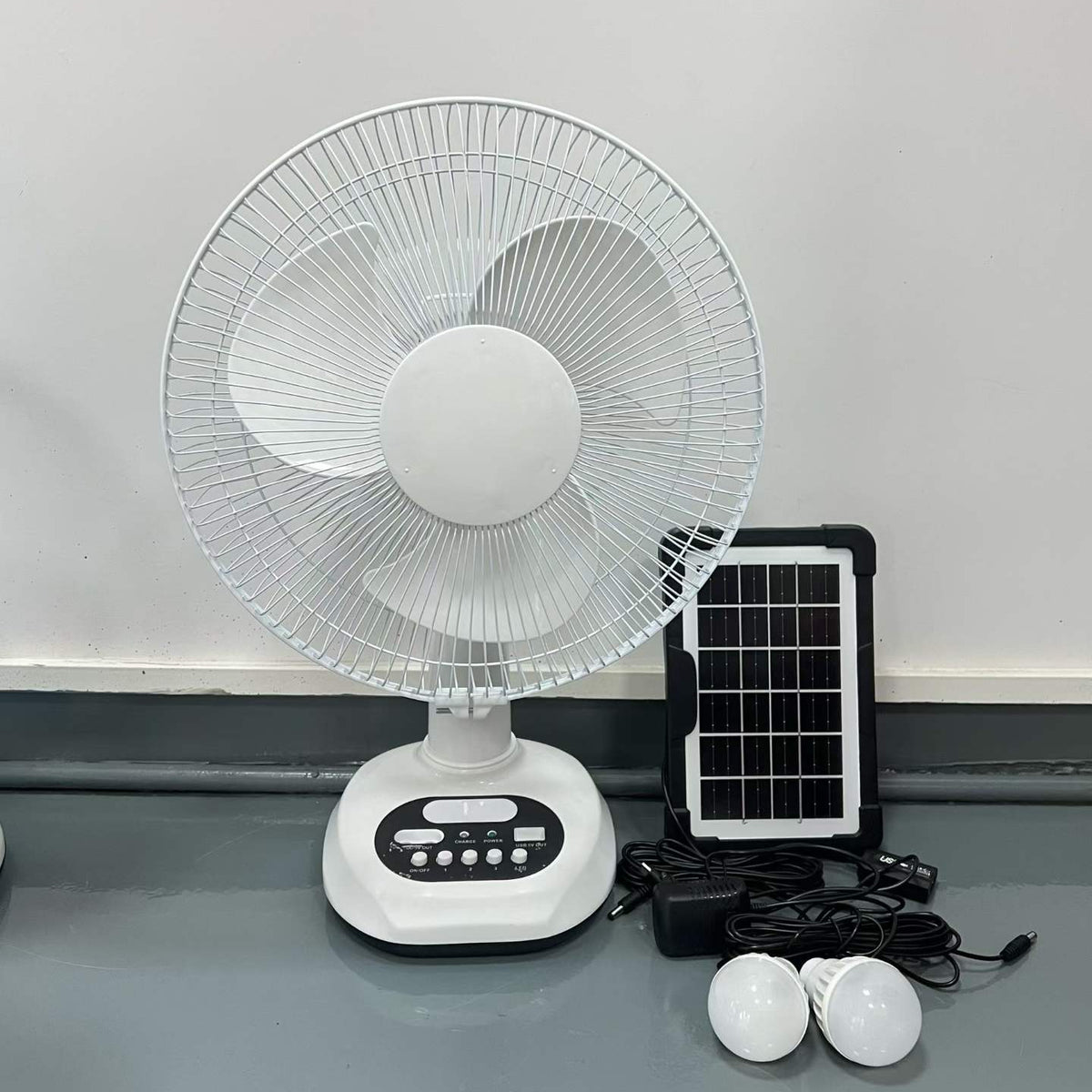

JMB-052 Series Solar Rechargeable Table Fan

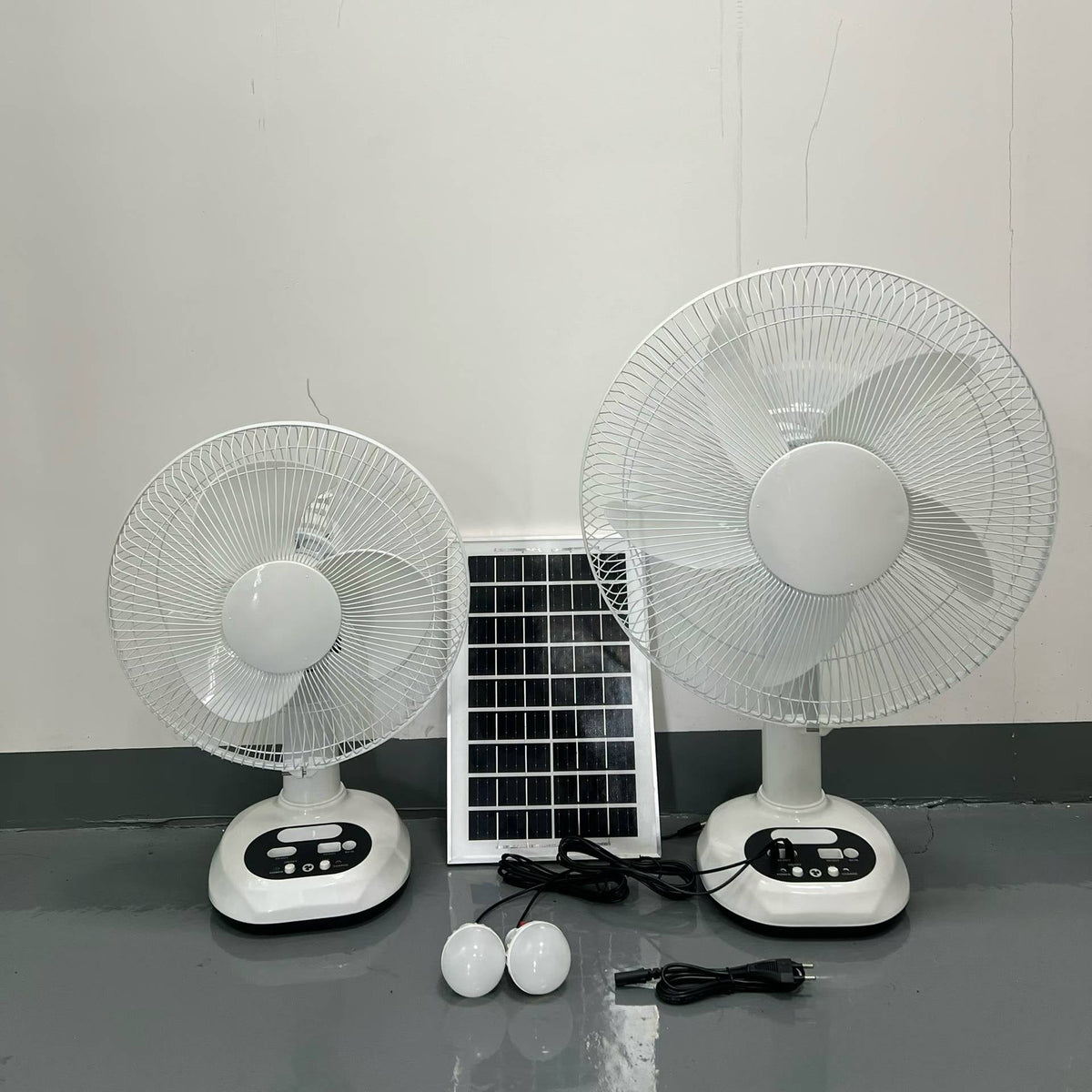

The JMB-052 series is available in 12-inch and 16-inch configurations for homes, offices, shops, camping, and emergency backup during power outages.

The series offers lithium-battery Type-C and lead-acid AC/DC charging configurations. Models equipped with a compatible DC input can be connected to a matched solar panel, making the series suitable for areas with unstable electricity supply and off-grid applications.

Key Features

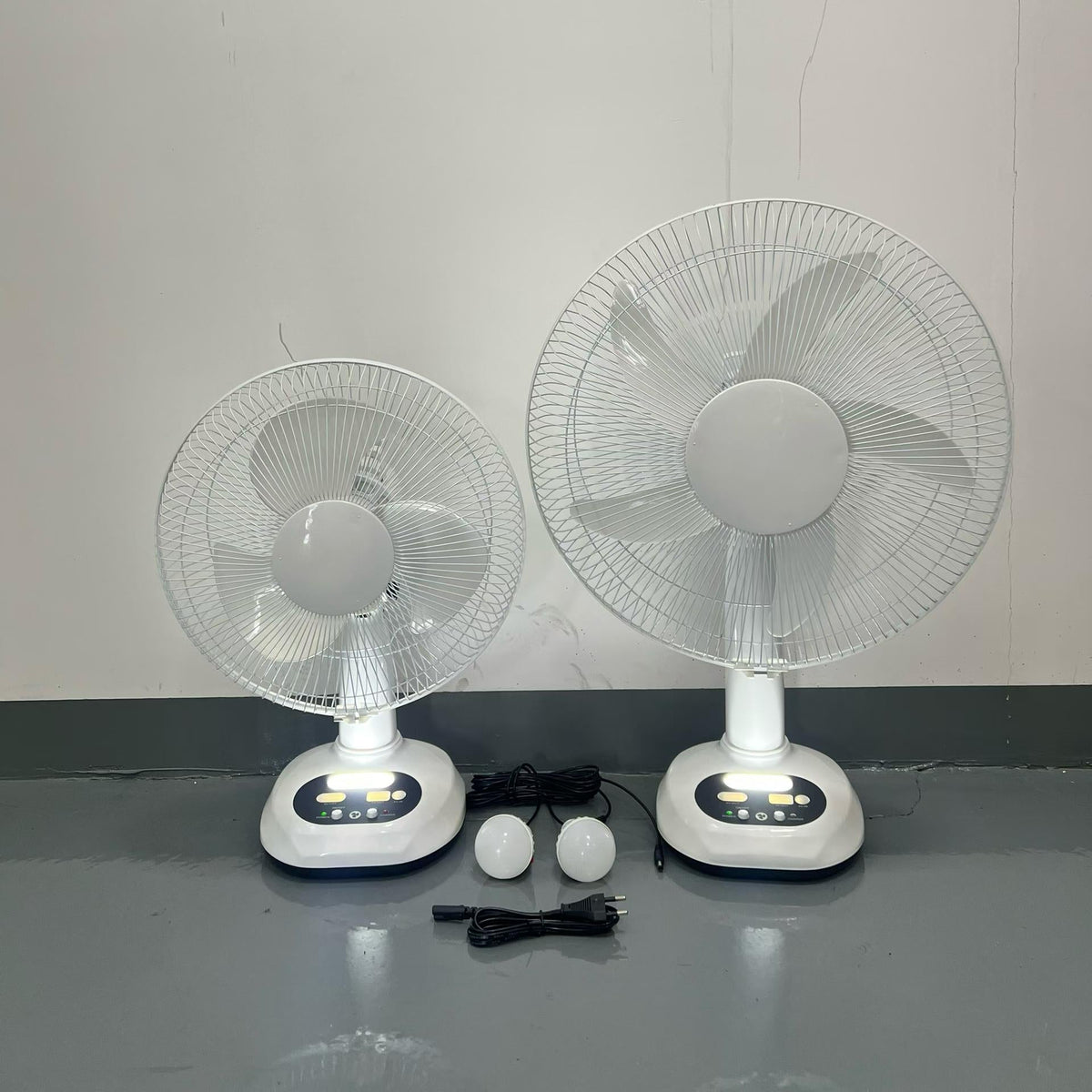

• 12-inch and 16-inch configurations available
• Durable PP fan blades
• 545 motor
• Rechargeable battery operation
• Solar charging compatibility
• Automatic left-right oscillation

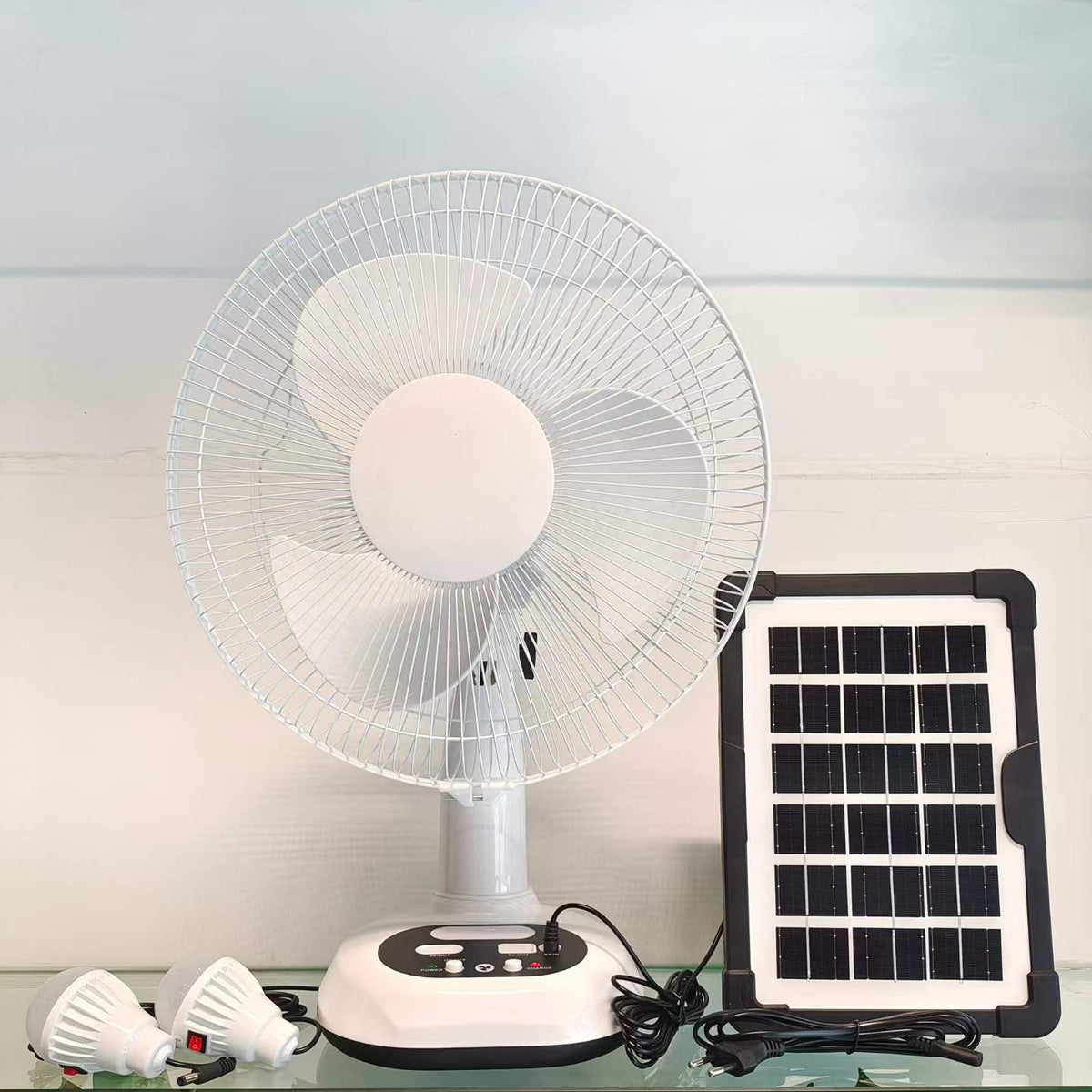

• Built-in LED night light
• USB 5V output for mobile-device charging
• DC outputs for compatible external LED bulbs
• Approximate runtime: 4 hours on high speed and 6 hours on low speed

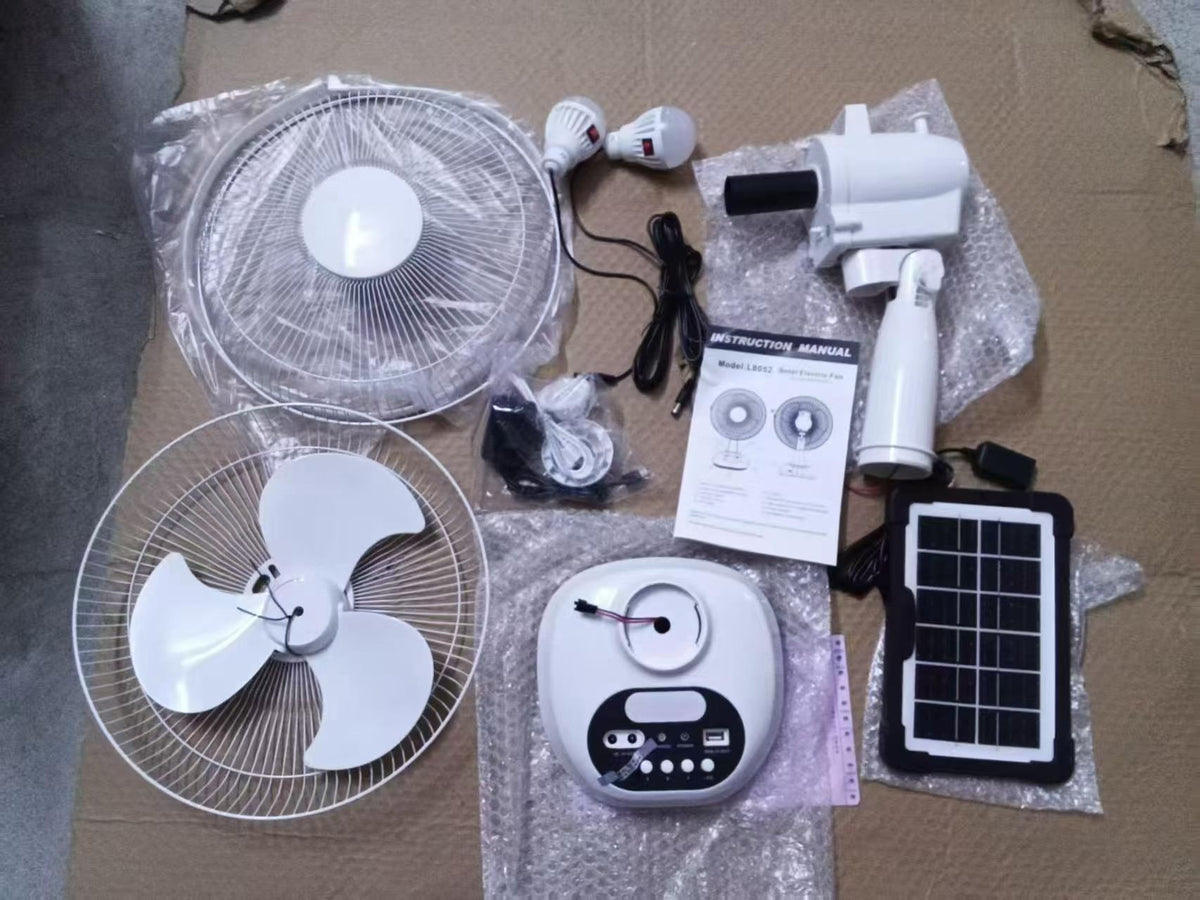

• Charging cable and adapter supplied as standard
• External LED bulbs are optional accessories
• Plug type and configuration can be customized for different markets

Available 12-Inch Configurations

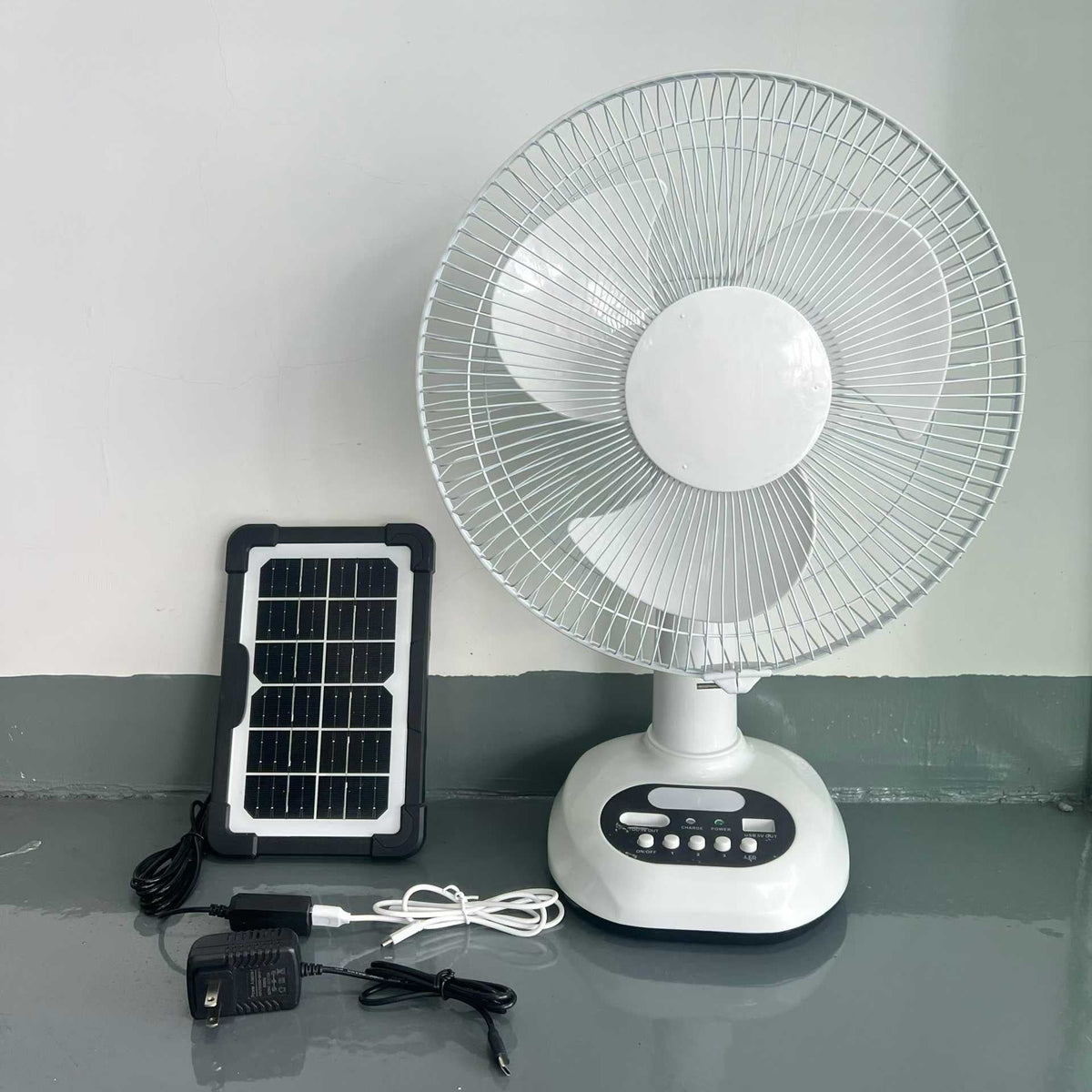

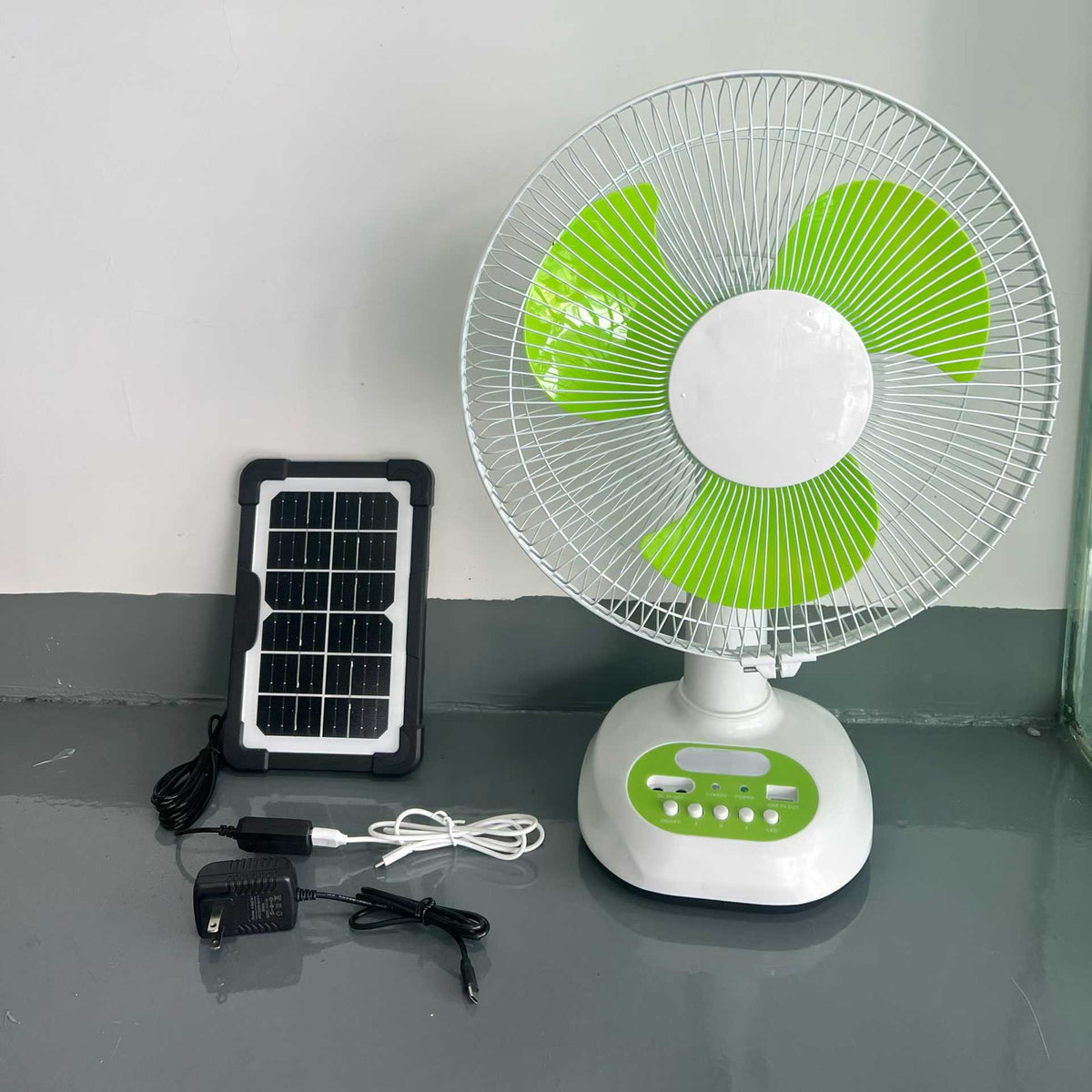

JMB-L052 Lithium Type-C Version

• Rated power: 10W

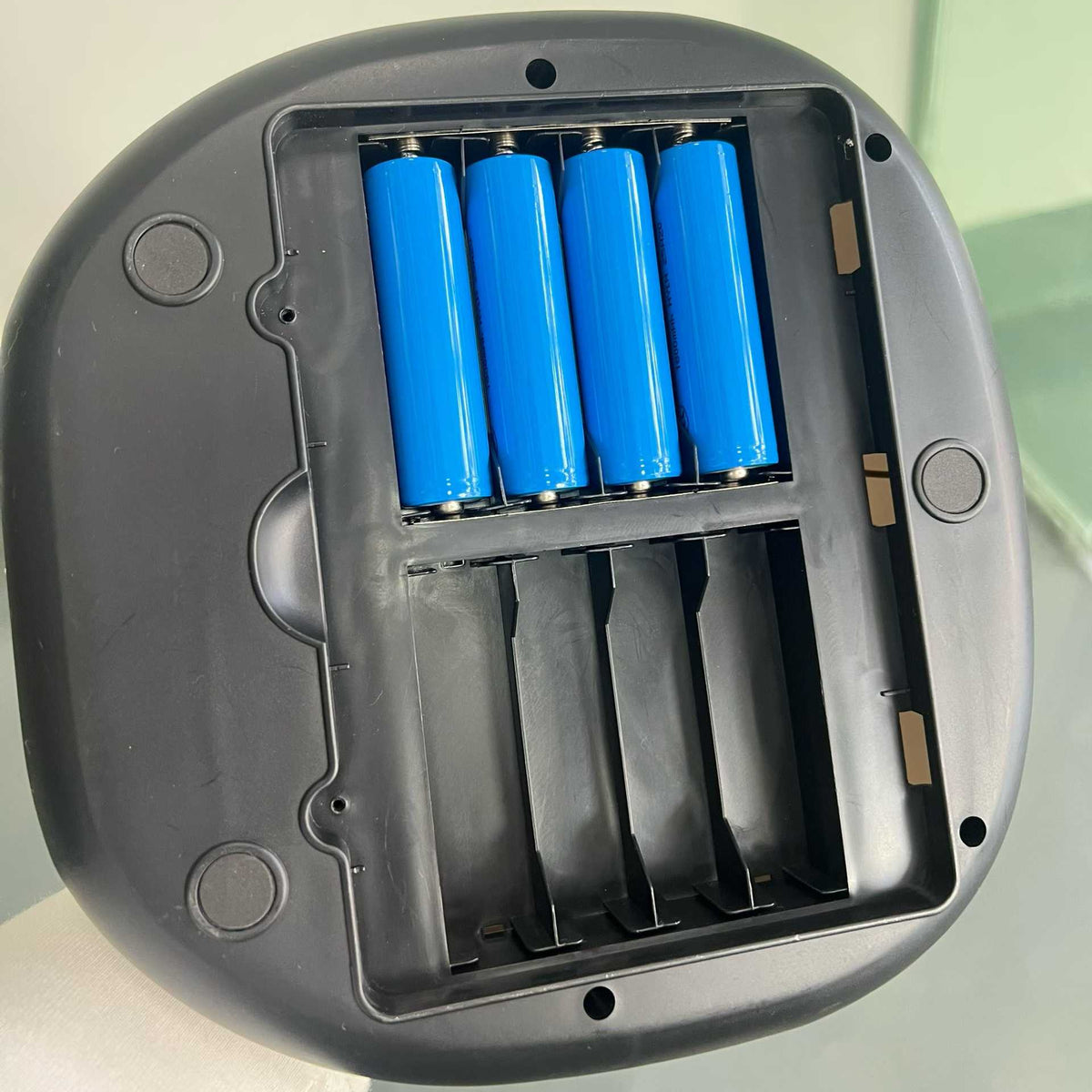

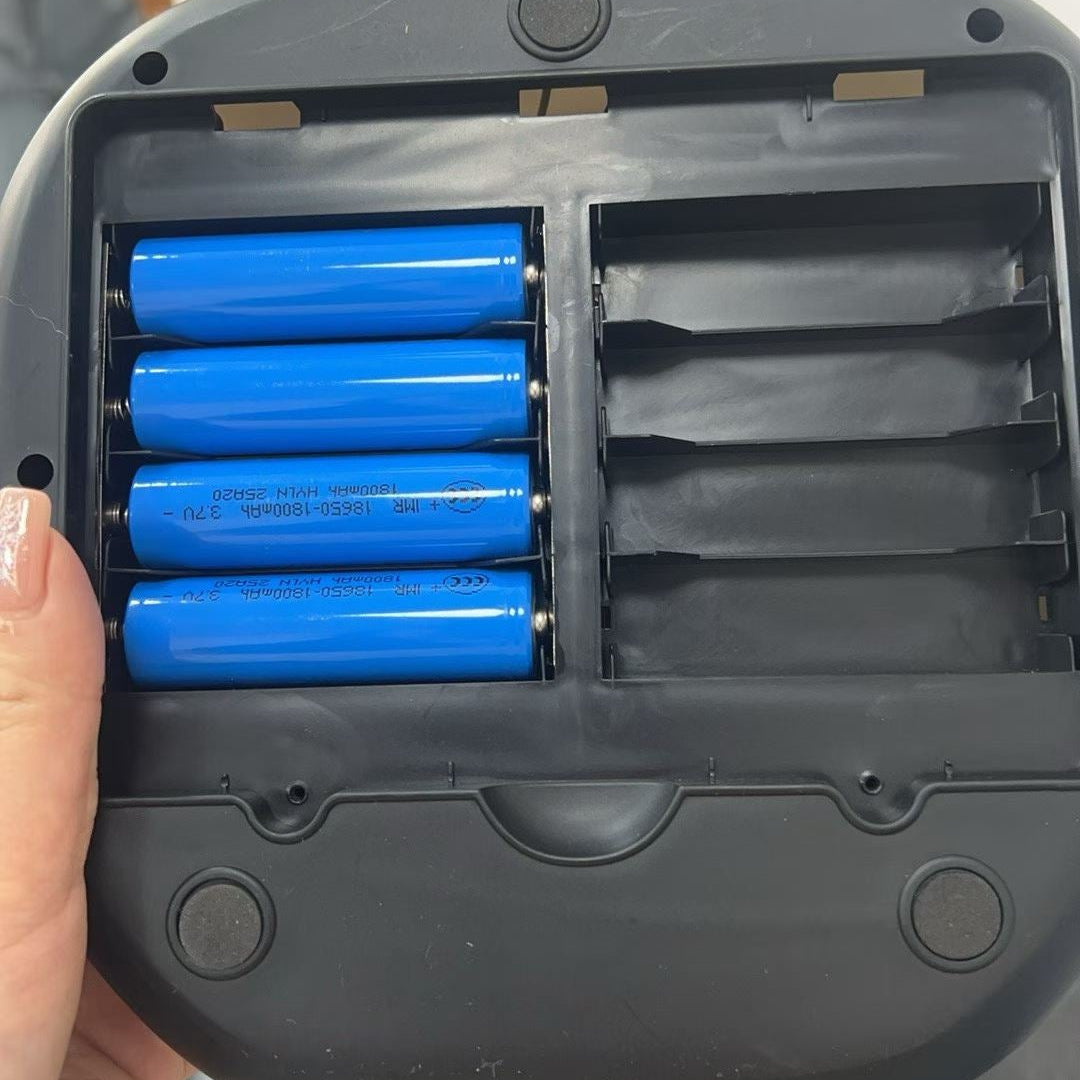

• Battery: 3.7V 7.2Ah lithium battery
• Speed settings: 3
• Blade: 12-inch three-blade PP fan blade
• Charging input: Type-C

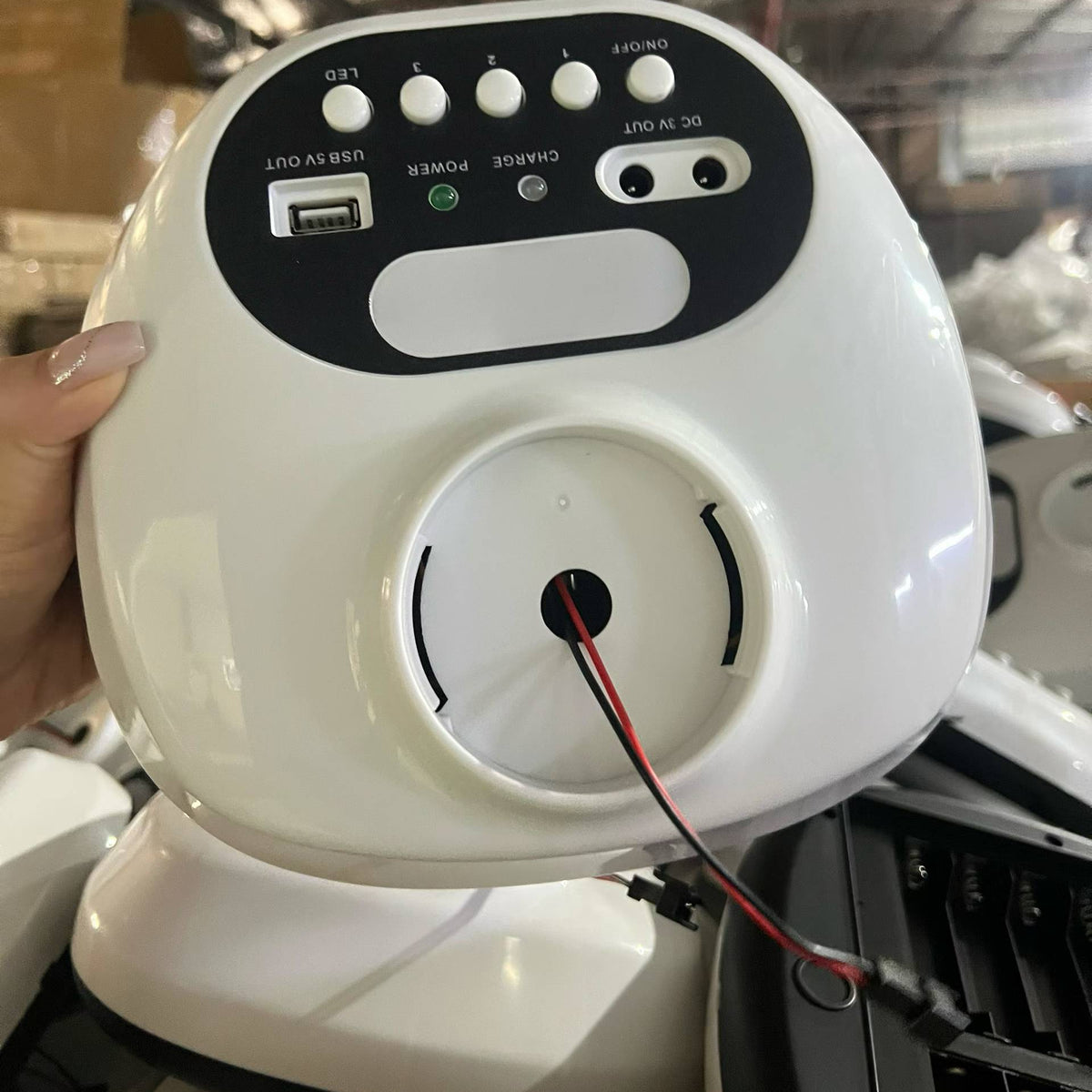

• Outputs: two DC 3V ports and one USB 5V port
• Solar panel specification: 6V 4W photovoltaic panel with voltage regulator and 3 m cable
• Charging accessories: Type-C charging cable and adapter charging cable

JMB-052 Lead-Acid AC/DC Version

• Rated power: 15W
• Battery: 6V 4.5Ah rechargeable lead-acid battery
• Speed settings: 2
• Blade: 12-inch horn-style PP fan blade
• Charging inputs: 110–240V AC and DC 9V
• Outputs: two DC 6V ports and one USB 5V port
• Solar panel specification: 9V 3W monocrystalline solar panel with 3 m cable
• Charging accessories: 1 m AC charging cable with EU round plug as standard

12-Inch Product Dimensions and Packing

• Product dimensions: 34 × 25 × 50 cm
• Master-carton dimensions: 69.8 × 51.5 × 36.8 cm
• Packing: 6 pcs/carton
• Carton volume: approximately 0.133 m³
• Gross weight: approximately 19 kg

Configuration Notes

The specifications above are based on the supplied 12-inch configurations. Motor power, battery capacity, solar-panel specification, product dimensions, packing details, and runtime for the 16-inch version should be confirmed according to the selected configuration.

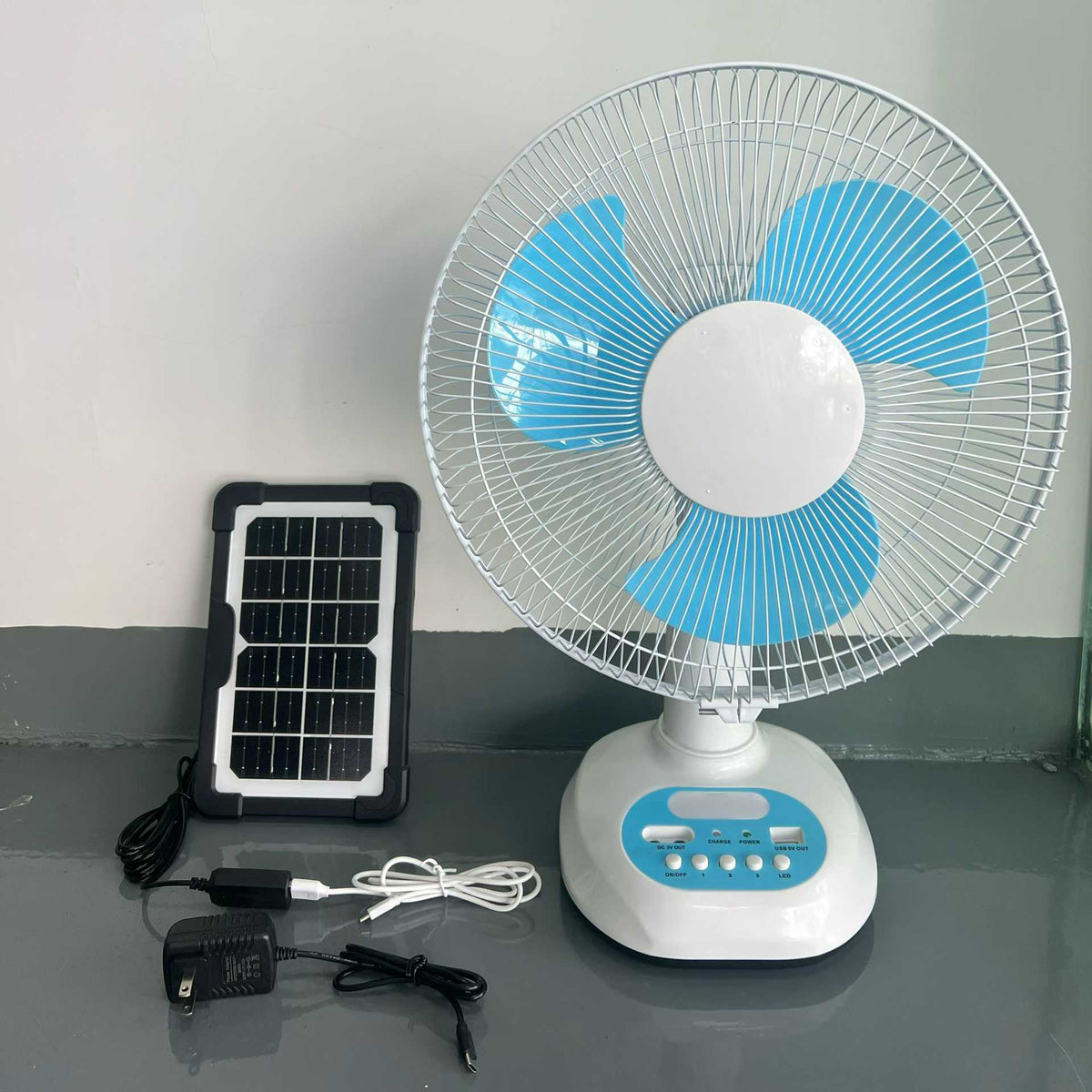

Charging cables and adapters are standard accessories. External LED bulbs are optional and are not included as standard. Solar-panel inclusion, plug type, housing color, blade color, and package contents can be confirmed according to the order and destination market.

OEM/ODM customization is available for branding, color, battery capacity, solar-panel configuration, plug type, packaging, and other market-specific requirements. Please contact us to confirm the final specifications and request a factory quotation.
